macro 30KPA Electronic Differential Pressure Flow Transmitter

Brand Name : WNK

Model Number : WNK268/WNK808B

Certification : CE

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal,Credit Card

Supply Ability : 2000pieces per week

Delivery Time : 5-8 working days

Packaging Details : Boxes

Pressure Type : Gauge pressure, differential pressure

Media : Air, Gas

Output signal : 4- 20mA

Pressure range : -100Kpa ~ 60MPa

Accuracy : 0.2% , 0.5% FS

Operating temperature : -40~85 ℃

Working temperature : -10~70℃

Net weight : 347.5g

Contact Now

4-20mA Differential Pressure Transmitters For Gas Differential Pressure Measurement

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-10Pa~100Pa, -100kPa~+100kPa
Accuracy	0.2%, 0.5%
Stability	0.8%F.S./Year
Maximum static pressure	70 KPa
Max overload	250% of sensor range
Output signals	4~20mA
Housing material	Aluminum14
Induct Pressure Connection:	M 8x1 female or Ø 8 dowel connection
Power Supply	Non-explosion: 10.5~45V DC
Power Supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Compensation temperature	-10~70℃
Working temperature	-10~70℃

WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.

Application

It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.

Product Show

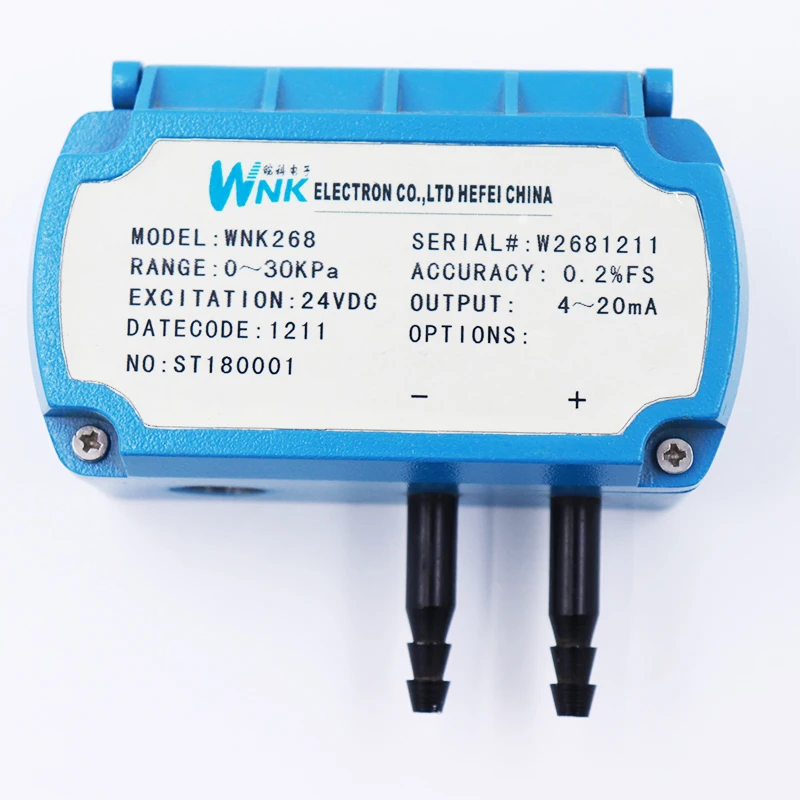

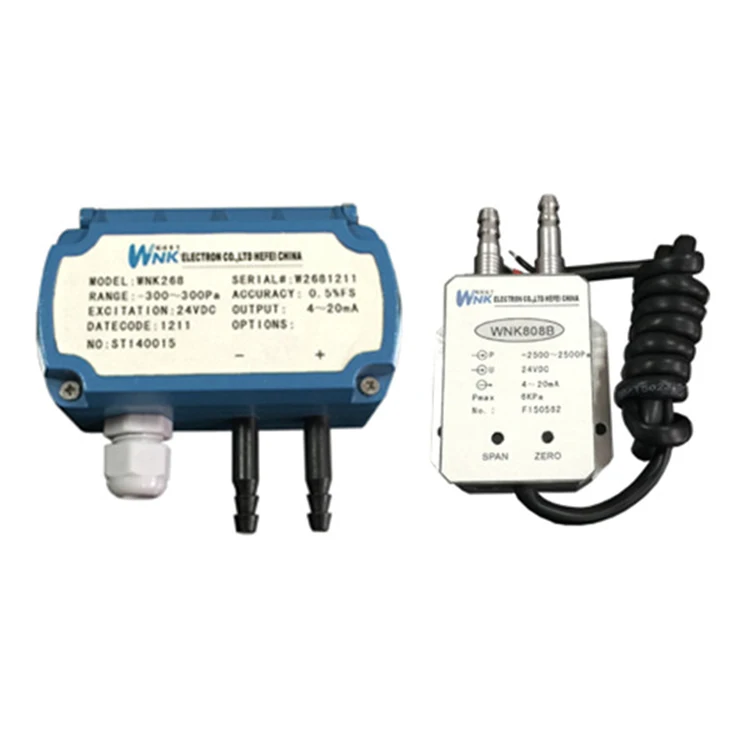

macro 30KPA Electronic Differential Pressure Flow Transmitter

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
